TM-B 20W-80W
    Publish time 2020-09-24 16:06

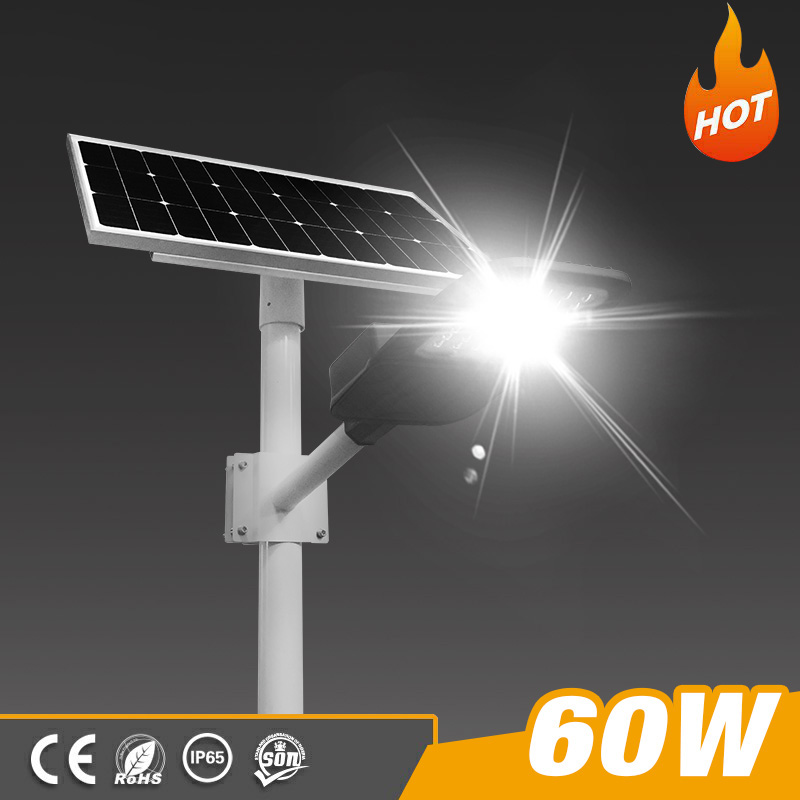

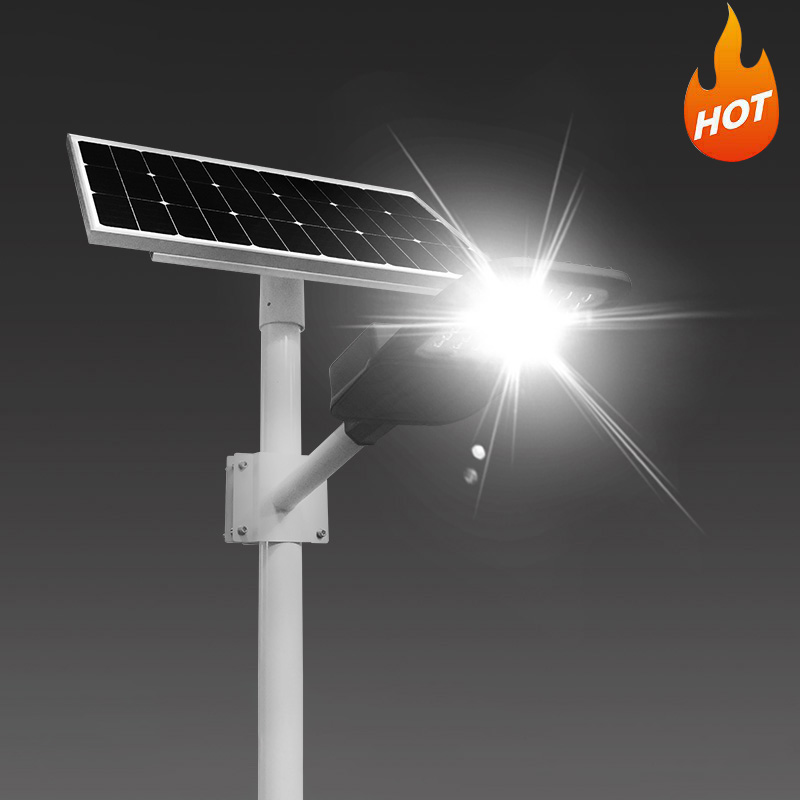

Semi-separated Solar Street Light With 160lm/w 3030 LED Chips
TM-B 20W-80W
MODELAL-B20AL-B30AL-B40AL-B50AL-B60AL-B70AL-B80

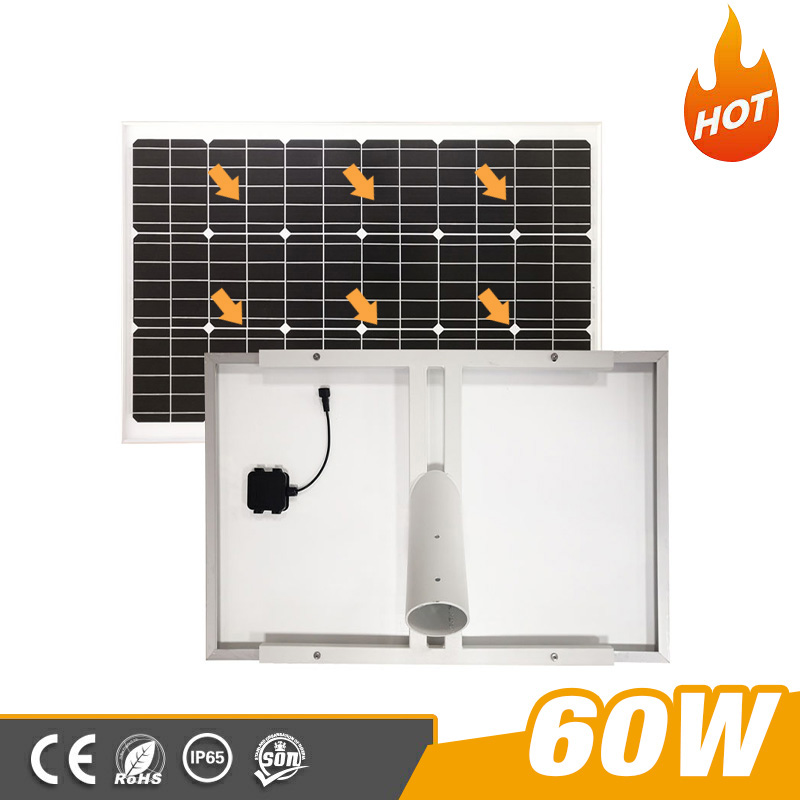

Solar panel (Mono)Maximum power18V 40W18V 60W18V 60W18V 80W18V 80W18V 100W18V 100W
Working life25 years
BatteryType: LiFe PO4  (built-in)12.8V 18AH12.8V 24AH12.8V 27AH12.8V 36AH12.8V 39AH12.8V 42AH12.8V 45AH
Working life5-8 years
ControllerPMW (built-in)
Connecting Cable1set/watt

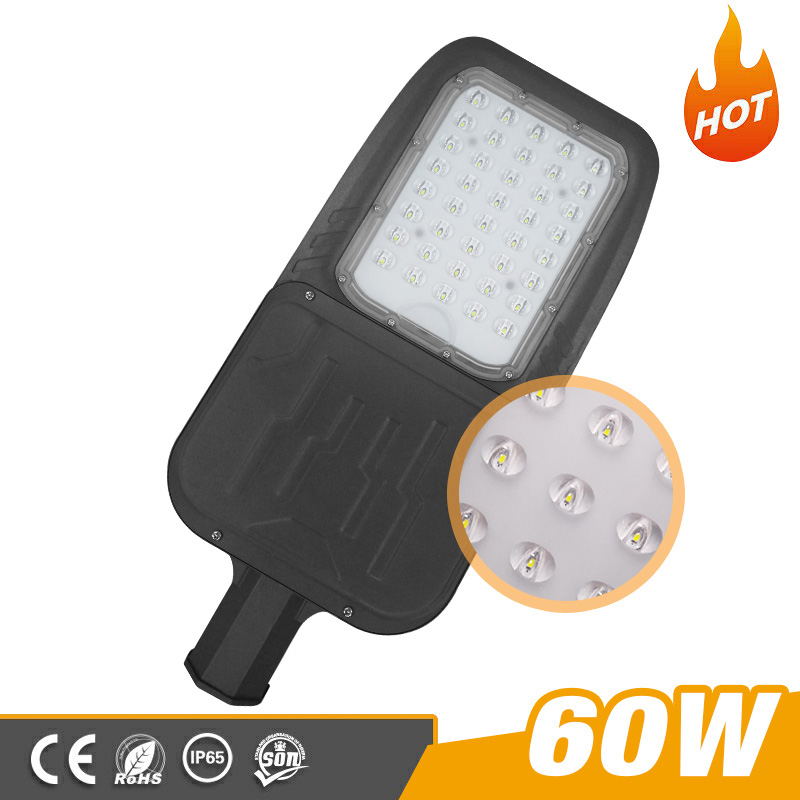

LED Lamp

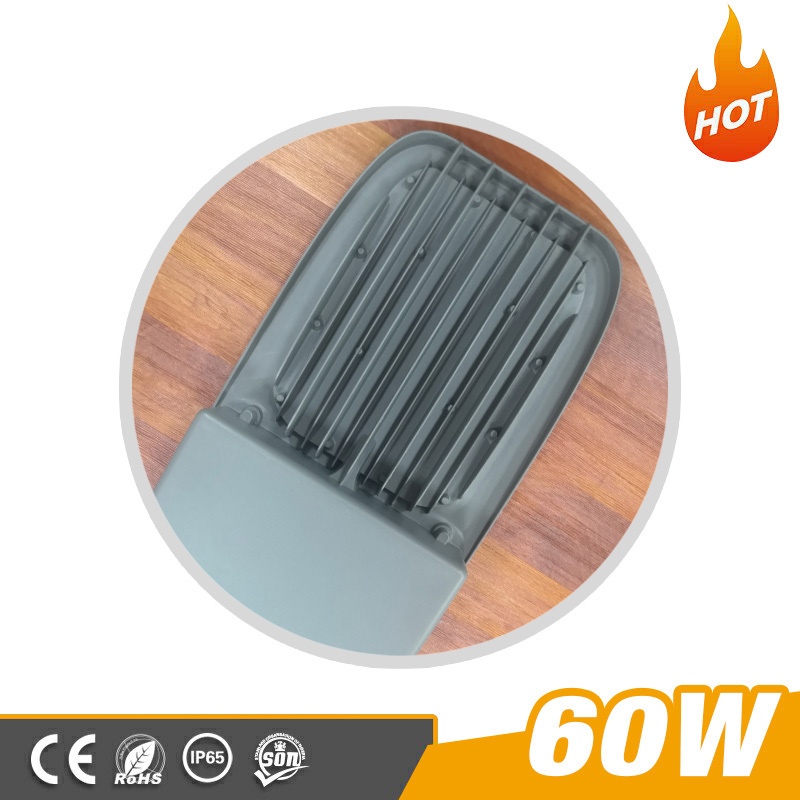

 (Aluminum plate lamp board with heat dissipation function) 		Max power12V 20W12V 30W12V 40W12V 50W12V 60W12V 70W12V 80W
Led chip brand:Bridgelux from USA with high brightness 5050 led chips
Lumen (LM):170lm/w (Raw led lumen)
working life50000 hours
Mounting height (m)4-5M5-6M6-7M6-7M7-8M8-9M9-10M
Mounting distance (m)18-20M20-25M20-25M20-25M20-25M20-25M25-28M
Charge time  (from the sun)6-7 hours (with enough strong sunshine)
lighting time12 hours/day, sustainable for 3 rainy days after full charged
Working TEMP ( ℃ ) -25~+65℃
Lighting pattern light-operated and time control
Product certificationCE, ROHS, IP65
Warranty3 years
